R. M. Young Model 50202 Self-Siphoning Rain Gauge

Locations: 7 gauges:

02 Level starboard, 10.31 m above water line

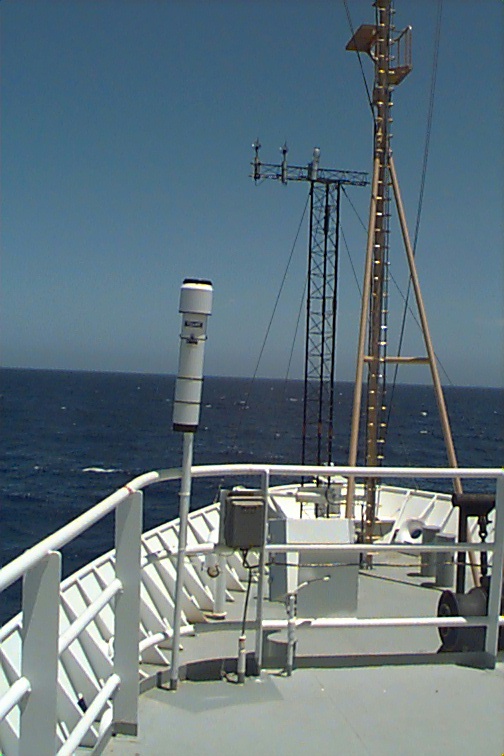

02 Level port, "

03 Level starboard, 12.83 m above water line

03 Level port, "

05 Level starboard, 17.73 m above water line

05 Level port, "

top of winch house, 13.31 m above water line

Accuracy

Modified by WHOI to put into IMET package. The level of water in the instrument is output in mm. Range is 0 - 50 mm. Instrument accuracy is +/- 1 mm. As with the other rain measuring devices on ship, the primary source of error is placement and exposure of the instrument.
