Data Acquisition Toolbox

daqpropedit

Invoke the property editor graphical user interface

Syntax

daqpropedit
daqpropedit(obj)

Arguments

obj	A device object.

Description

daqpropedit(obj) invokes the property editor graphical user interface (GUI) for the device object obj. The channels or lines contained by obj are displayed as well.

Remarks

Using daqpropedit, you can perform these tasks for device objects, channels, and lines:

• List all existing device objects as well as the channels or lines they contain. This is identical to using the daqfind function.
• Configure property values. This is identical to using the set function or the dot notation.
• Display the names and current values for configurable properties. This is identical to using the get function or the dot notation.
• Display property characteristics. This is identical to using the propinfo function.
• Display property help. This is identical to using the daqhelp function.

Example

Create the analog input object ai for a sound card and add one channel to it.

ai = analoginput('winsound');
addchannel(ai,1:2);

To configure property values for ai using daqpropedit

daqpropedit(ai)

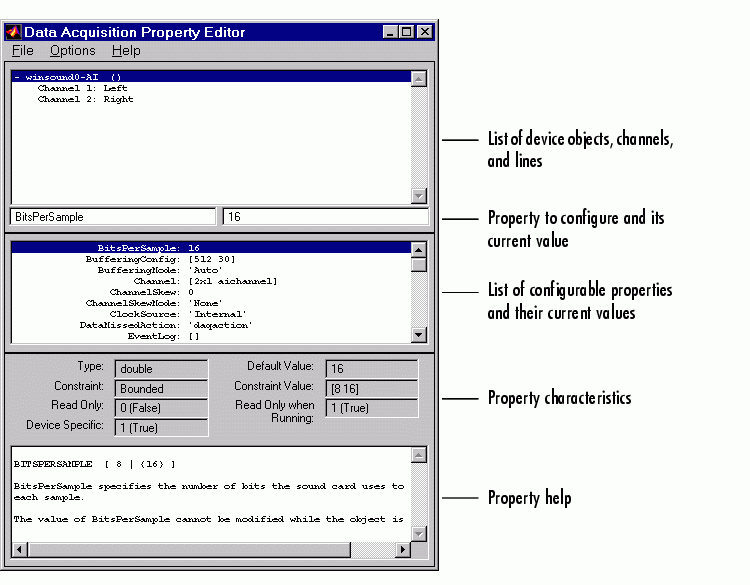

The Data Acquisition Property Editor is shown below.

See Also

Functions

daqfind, daqhelp, get, propinfo, set
