Thunder, Ligntning

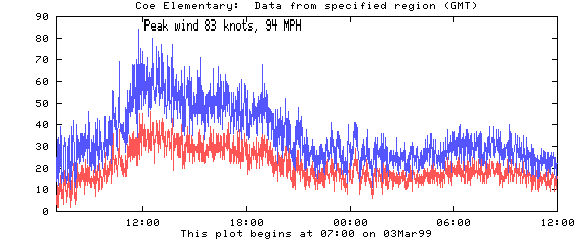

94 MPH wind
Hard Rain
James E. Tillman
Created 99/04/01
Last update 2001/07/01

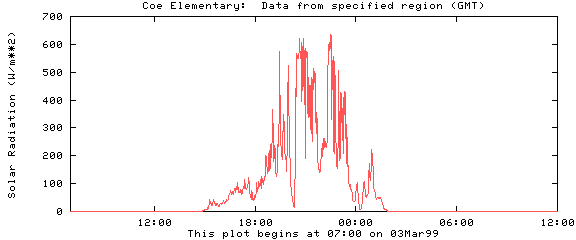

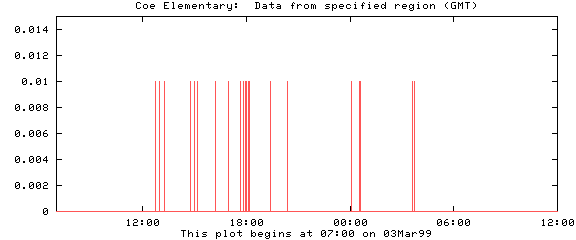

This example includes the three frames beginning on 3 March 1999, at 07:00 and continuing through 4 March, 12:00, showing: in the top frame, one minute average wind in red and instantaneous, peak wind sampled at one second intervals, in blue, the higher of the two traces. The second frame shows the solar radiation for the same time while the third indicates the rainfall by a vertical line every time 0.01 inch is collected in the rain gauge. The sensor was calibrated to 110 MPH before installation.
