Extracting Data from the Engine

Many data acquisition applications require that data is acquired at a fixed (often high) rate, and that the data is processed in some way immediately after it is collected. For example, you may want to perform an FFT on the acquired data and then save it to disk. When processing data, you must extract it from the engine. If acquired data is not extracted in a timely fashion, it may be overwritten.

Data is extracted from the engine with the getdata function. For example, to extract 1000 samples for the analog input object ai

data = getdata(ai,1000);

In addition to returning acquired data, getdata can return relative time, absolute time, and event information. As shown below, data is an m-by-n array containing acquired data where m is the number of samples and n is the number of channels.

getdata is considered a blocking function since it returns control to MATLAB only when the requested data is available. Therefore, samples are not missed or repeated. When a trigger executes, acquired data fills the engine. When a getdata call is processed, the requested samples are returned when the data is available, and then extracted from the engine.

As shown below, if a fraction of the data stored in the engine is extracted, then getdata always extracts the oldest data.

If another getdata call is issued, then once again, the oldest samples are extracted.

Rules for Using getdata

Using getdata to extract data stored in the engine follows these rules:

• If the requested number of samples is greater than the samples to be acquired, then an error is returned.
• If the requested data is not returned in the expected amount of time, an error is returned. The expected time to return data is given by the time it takes the engine to fill one data block plus the time specified by the Timeout property.
• You can issue ^C (Control+C) while getdata is blocking. This will not stop the acquisition but will return control to MATLAB.
• The SamplesAcquired property keeps a running count of the total number of samples per channel that have been acquired.
• The SamplesAvailable property tells you how many samples you can extract from the engine per channel.
• MATLAB supports math operations only for the double data type. Therefore, if you extract data using the native data type of your hardware (typically int16), you must convert the data to doubles before performing math operations.

For more information about getdata, refer to its reference pages in Chapter 9, Function Reference.

Example: Previewing and Extracting Data

Suppose you have a data acquisition application that is particularly time consuming. By previewing the data, you can ascertain whether the acquisition is proceeding as expected without acquiring all the data. If it is not, then you can abort the session and diagnose the problem. This example illustrates how you might use peekdata and getdata together in such an application.

You can run this example by typing daqdoc5_2 at the MATLAB command line.

1. Create a device object - Create the analog input object AI for a sound card. The installed adaptors and hardware IDs are found with daqhwinfo.

AI = analoginput('winsound');
%AI = analoginput('nidaq',1);
%AI = analoginput('cbi',1);

2. Add channels - Add one hardware channel to AI.

chan = addchannel(AI,1);
%chan = addchannel(AI,0); % For NI and CBI

3. Configure property values - Define a 10-second acquisition, set up the plot, and store the plot handle in the variable P. The amount of data to display is given by preview.

duration = 10; % Ten second acquisition
set(AI,'SampleRate',8000)
ActualRate = get(AI,'SampleRate');
set(AI,'SamplesPerTrigger',duration*ActualRate)
preview = duration*ActualRate/100;
subplot(211)
set(gcf,'doublebuffer','on')
P = plot(zeros(preview,1)); grid on
xlabel('Samples')
ylabel('Signal Level (Volts)')

4. Acquire data - Start AI and update the display using peekdata every time an amount of data specified by preview is stored in the engine by polling SamplesAcquired. The drawnow command forces MATLAB to update the plot. After all data is acquired, it is extracted from the engine. Note that whenever peekdata is used, all acquired data may not be displayed.

start(AI)
while AI.SamplesAcquired < preview
end
while AI.SamplesAcquired < duration*ActualRate
   data = peekdata(AI,preview);
    set(P,'ydata',data)
   drawnow
end

Extract all the acquired data from the engine, and plot the data.

data = getdata(AI);
subplot(212), plot(data), grid on
title('All Acquired Data')
xlabel('Samples')
ylabel('Signal level (volts)')

5. Clean up - When you no longer need AI, you should remove it from memory and from the MATLAB workspace.

delete(AI)
clear AI

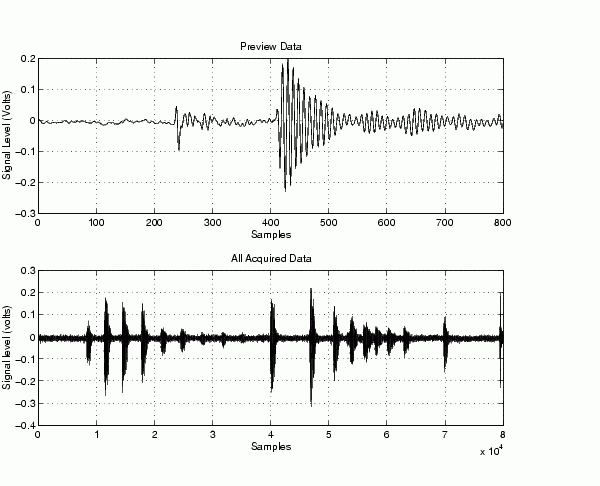

The data is shown below.
