Color Fill

Once you have created a color, 2D, scalar plot (see Producing a 2D Scalar Plot), you may control the color fill options using the "Color Table" menu. From the IVE Main Window, select "Color Table." This reveals the following choices: Display Table, Edit Table, New Table, and Shift Colors.

• Display Table: This command opens the Color Bar Window, displaying the color table that is currently active in your IVE session. The Color Bar Window assigns a number to each color, and is therefore useful for editing color tables. To close the Color Bar Window, simply click on "Display Table" a second time.

• Edit Table: This choice allows you to edit the active color table. Upon selecting Edit Table, you are given the two options: Edit RGB and Edit HSL.

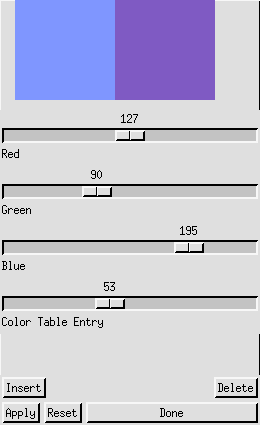

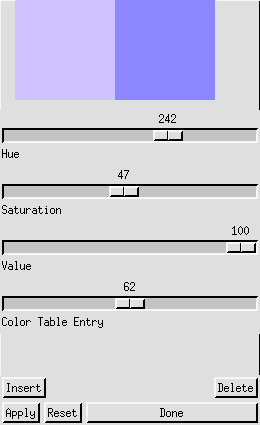

  The Edit RGB Popup (below left) allows you to mix colors by varying the intensity of Red, Green, or Blue. On the other hand, the Edit HSL Popup (below right) window varies the hue, saturation, and intensity values.

You may use either the Edit RGB Popup or the Edit HSL Popup to create custom color tables. Here's how:
• Using the "Display Table" function, activate the Color Bar Window. The Color Bar Window assigns numbers to each color in the table, facilitating the editing process.
• Use the Color Table Entry bar in the Edit Popup to select the number of the color you wish to edit. Once you have selected a color, it is displayed in the left half of the palette located at the top of the Edit Popup. Now, adjust the three mixer bars until the right half of the palette displays the new color you want. Click on the "Apply" button to activate the change.
• To delete a color from a color table, make sure that its number is displayed at the Color Table Entry bar and click once on the "delete" button.
• If you wish to insert a color, look on the Color Bar Window to determine the number of the color that is located to the right of the point of insertion. Use the Color Table Entry bar in the Edit popup to display this number. Now, mix the new color and click on the "Insert" button.
• To undo all changes you have made to the active color table, choose the "Reset" button in the Edit popup.
• Once you finish editing a table, you can save it to your directory (see WRITECOLORTABLE).

• New Table: The Default Color Table is automatically applied at the beginning of each IVE session and remains active until a different table is read. To read a color table, click on "New Table" in the Color Table menu. This activates the New Table Menu as shown in the Figure Below:

In the New Table Menu, there are seven IVE color tables. These tables can be used to create either color or grayscale plots.
• Color Plots
  The five color tables available in IVE for creating color plots are Default, Blue/Red, Green/Blue/Red, Movie Blue/Red, and Rainbow (shown below).

• Grayscale Plots
  The Dark/Light and Light/Dark color tables (pictured below) can be used to create grayscale plots. However, grayscale plots created with these color tables often produce low quality photocopies. For this reason, IVE contains a grayscale stippling option for filling 2D plots (refer to Producing a 2D Scalar Plot).

You may also choose to read a user-created color table from your directory. To read a custom color table, simply select "Custom Table" from the New Table Menu. This activates a widget which allows you to select any color table of the format *.ctb from your directory (see also READCOLORTABLE).
• Shift Colors: This is the last option in the Color Table menu. It allows you to vary the color legend by shifting the color table. For example, if you want negative values shaded blue and positive values shaded red, the Color Options Window (displayed below) allows you to slide the color table so that the zero contour corresponds to the transition between red and blue. To open the widget, select "Shift Colors" from the Color Table menu.

The following functions are performed in the Color Options Window:
• Slide Color Table: Click on the left and right arrow buttons to vary the color legend of the plot.
• Lock Color Table: Once the color table is optimally positioned, "Lock Color Table" locks the table in place. This is especially useful for creating successive plots, such as in a loop (see LOCKCOLORTABLE).
• Reset: The "Reset" button slides the color table back to its original position.
• "Toggle Background" allows you to select either black or white as a background for your plot.
• Color Bar: If the active color table is not already displayed at the bottom of your screen, clicking on the "Color Bar" button activates the Color Bar Window (see the "Display Table" section above).
